Alliage 1200 tree grate
Alliage 1500 tree grate
Alliage rectangular tree grate
Alliage tree grate

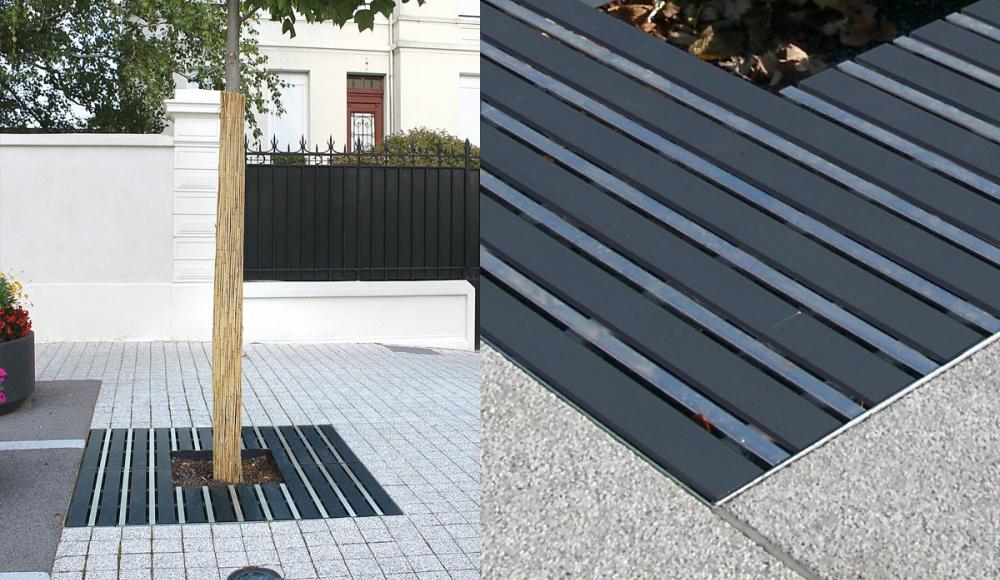

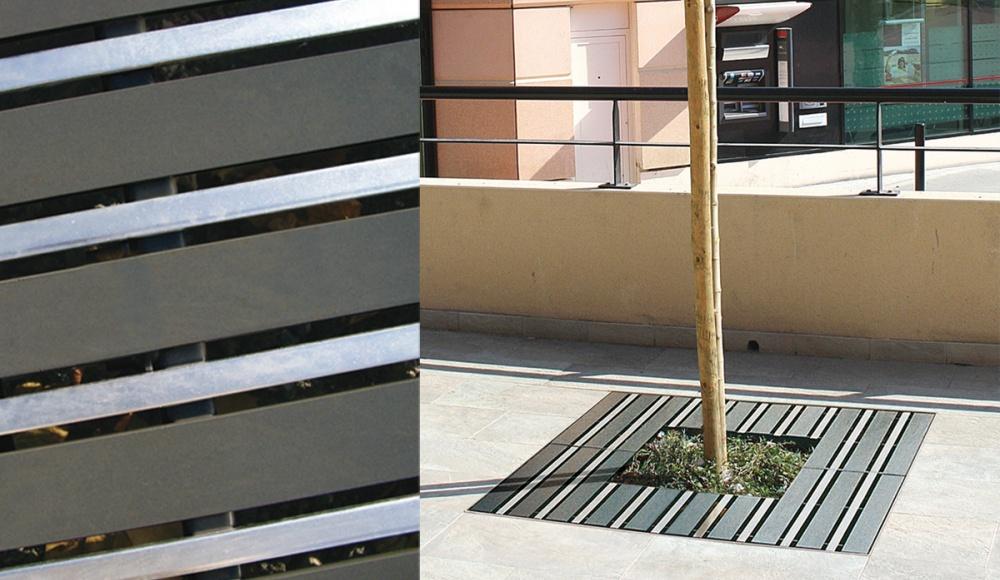

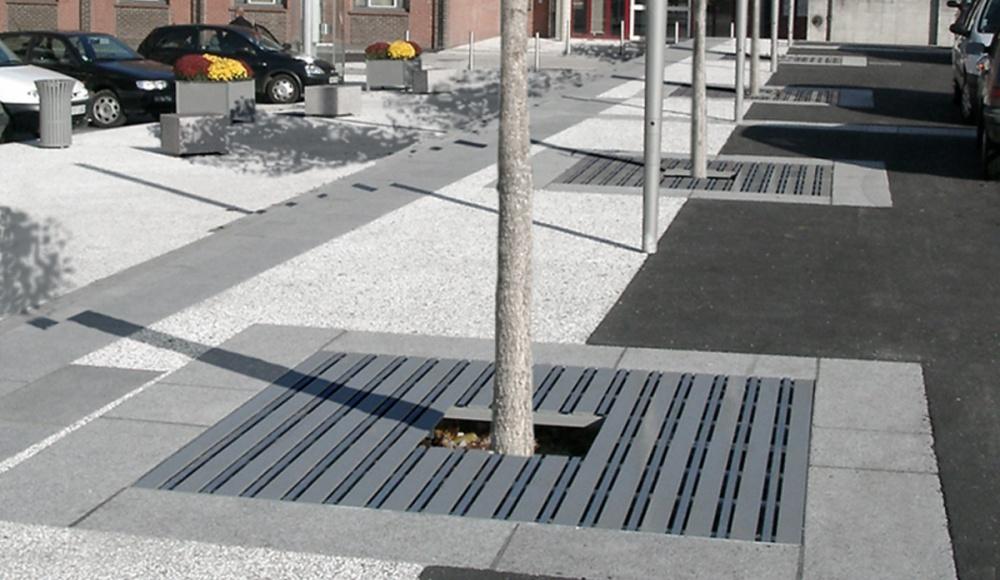

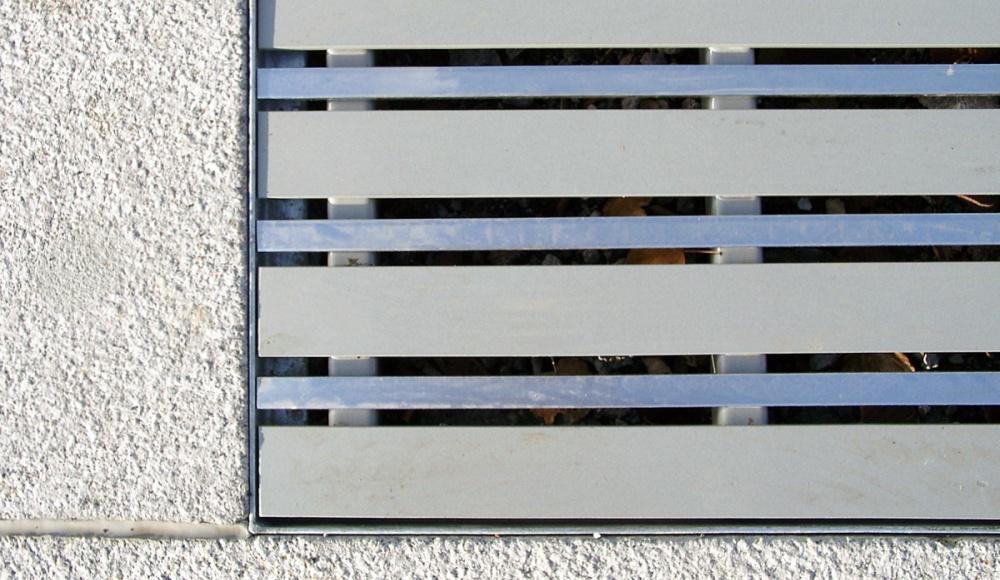

Alliage tree grates - street furniture. Tree grates for trees made from solid steel and stainless steel profiles consisting of two elements fastened together then placed in a frame to be sealed.
Compliance with standard P98-350.
Central opening 555 mm.
Total thickness of 45 mm.
Square 1200 - External frame dimensions: 1200 x 1200 mm
Square 1500 - External frame dimensions: 1480 x 1480 mm
Rectangular – External frame dimensions: 1005 x 1480 mm
Frame to be sealed: hot-dip galvanised.
Tree grate: steel, zinc coating then baked polyester powder coating. Deep, highly-polished stainless steel.
More details in the Materials section
Recess for spotlight
Drainage hatch
Hatch for wooden stake
Base for wooden stake
