Evolution A+A Tree grate
Evolution B+B Tree grate
Evolution C+C Tree grate
Evolution D+D Tree grate
Evolution B+D Tree grate
Evolution D+C Tree grate
Evolution B+C Tree grate
Evolution C+A Tree grate
Evolution B+A Tree grate
Evolution D+A Tree grate
Evolution Tree grate

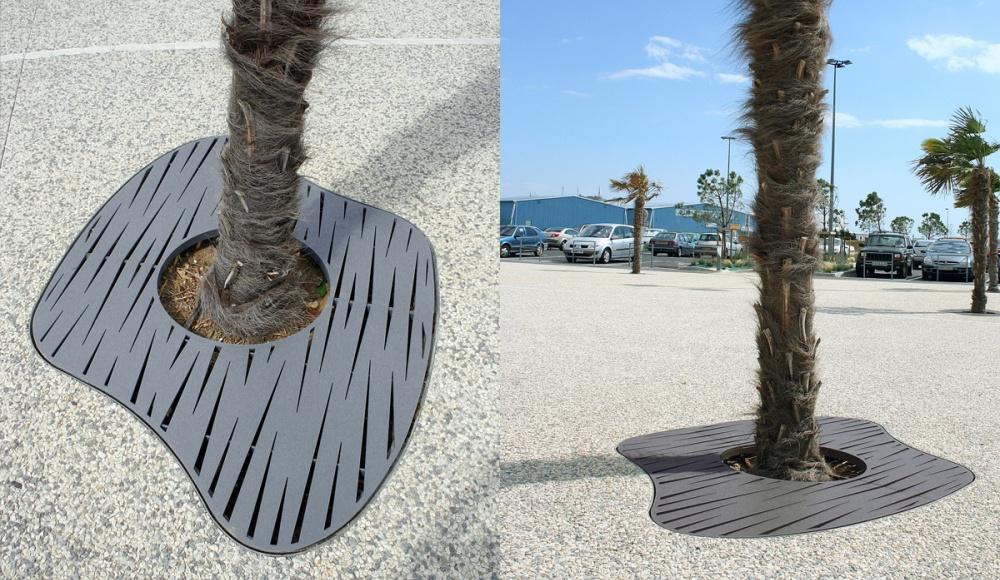

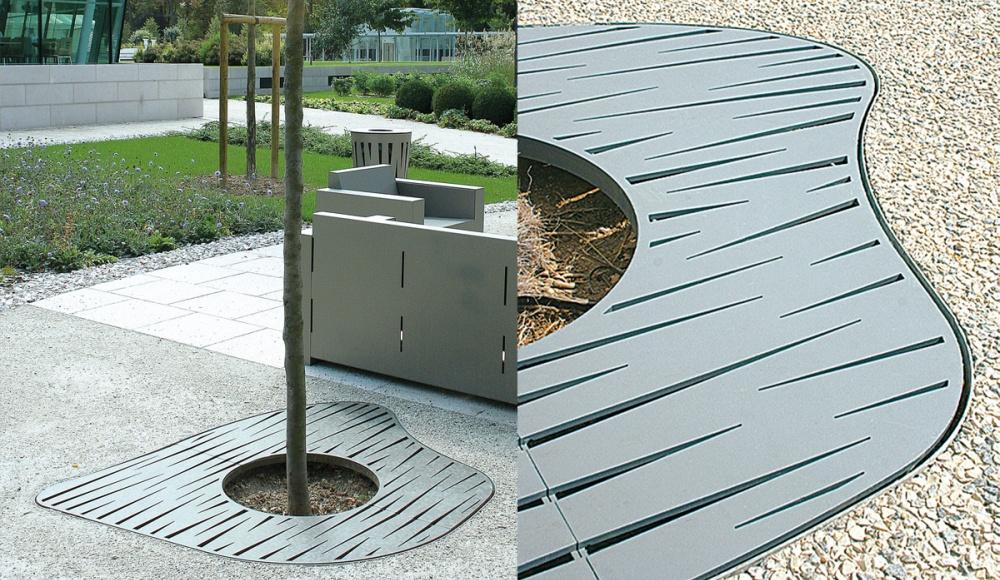

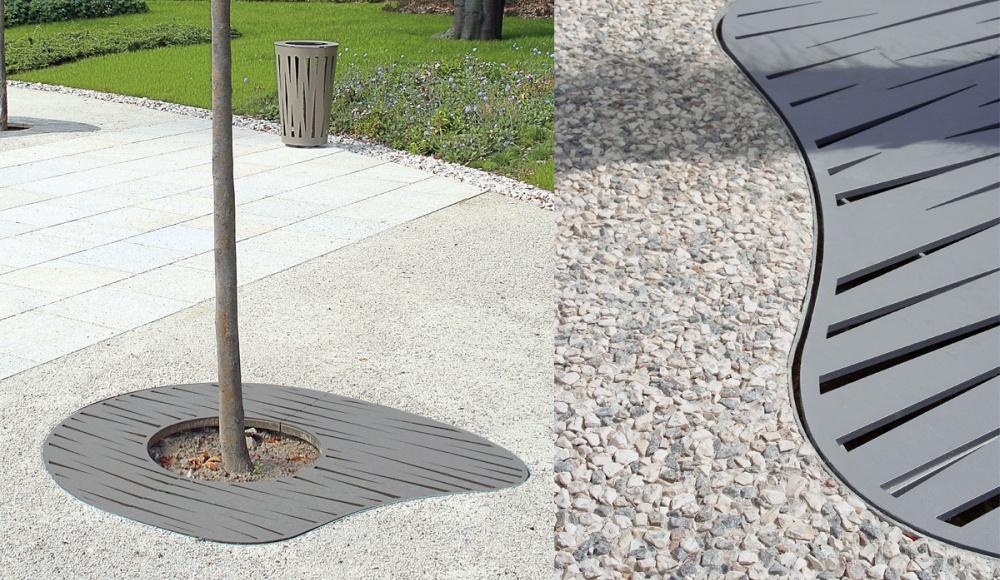

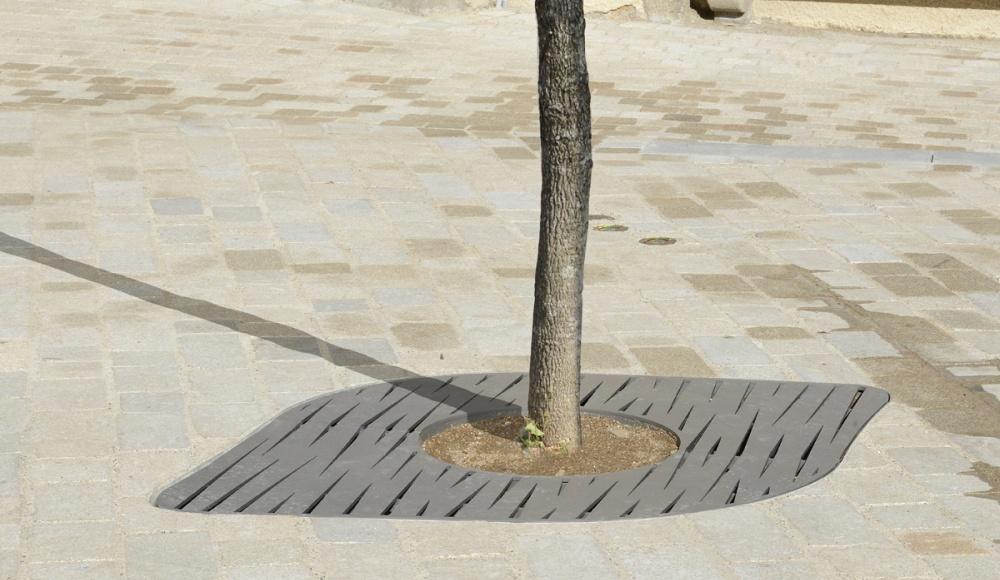

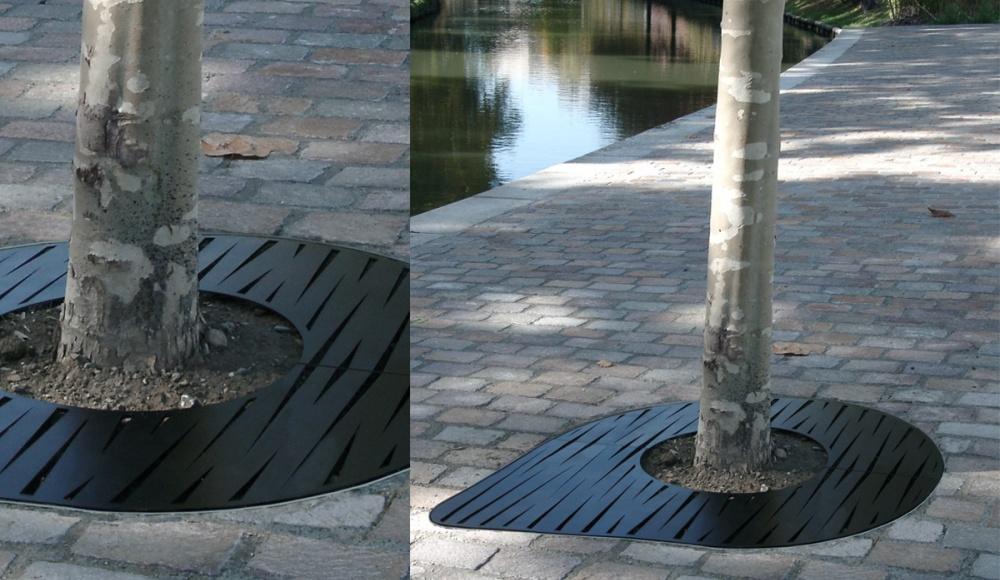

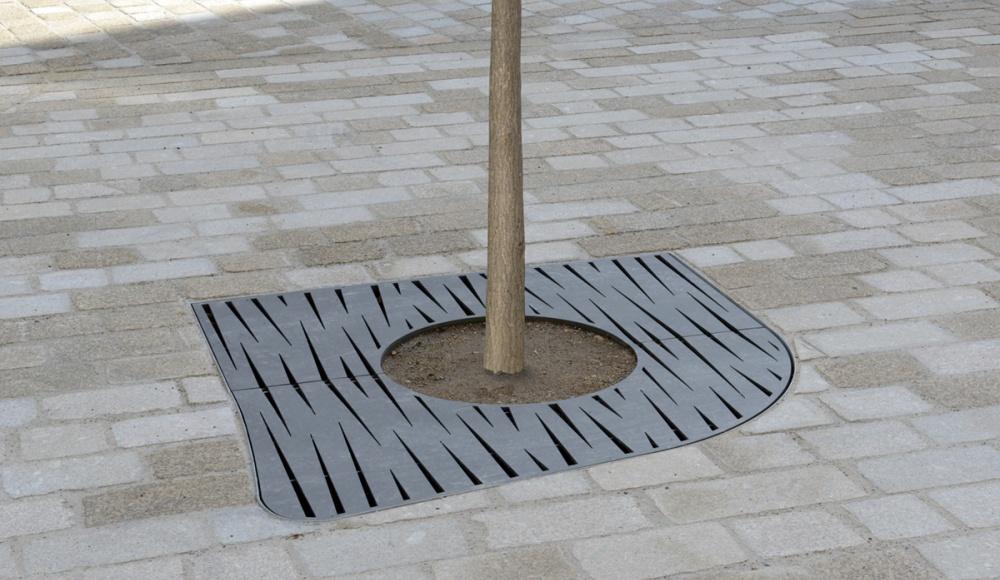

Tree grates Evolution - street furniture : 4 half-shapes, modular between them, offering 10 different models. Basic in its square or round shapes, more subtle for random shapes. Like shadows on the ground.
A large choice of combinations, a rendering full of character, original, harmonizing perfectly with the plant
Tree grates for trees made from reinforced openwork sheet steel, 8 mm thick. Range consisting of 4 modular half shapes offering 10 different models. Screwed elements placed in a sealed frame.
Compliance with standard P98-350.
Central opening ø 540 mm.
Total thickness of 45 mm.

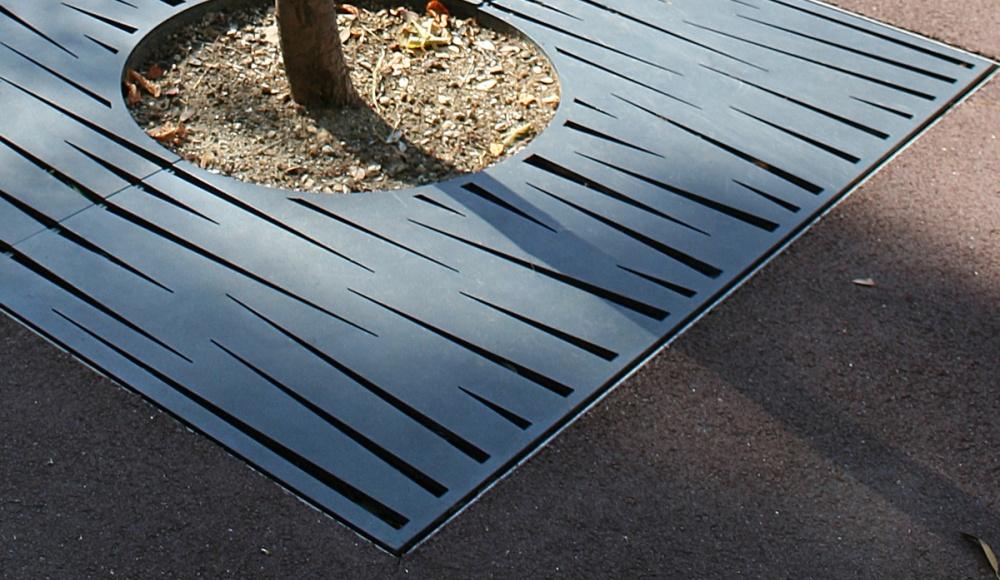

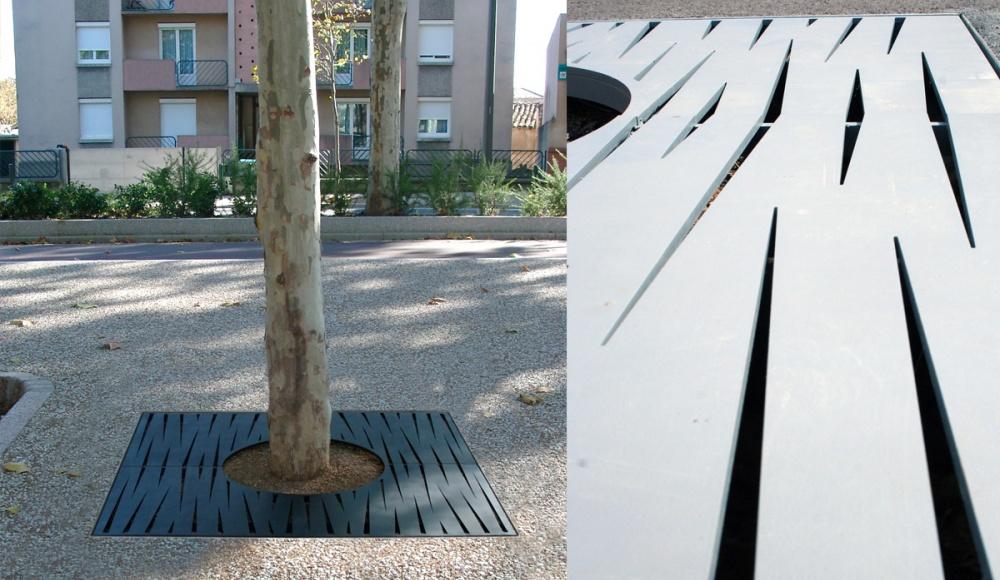

Mesh A+A – Square: External frame dimensions: 1200 x 1200 mm

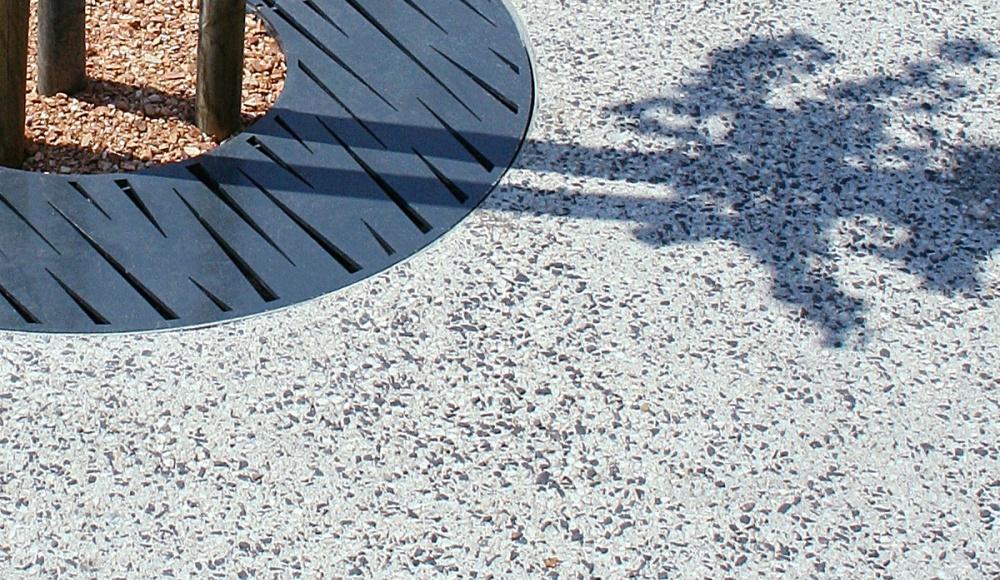

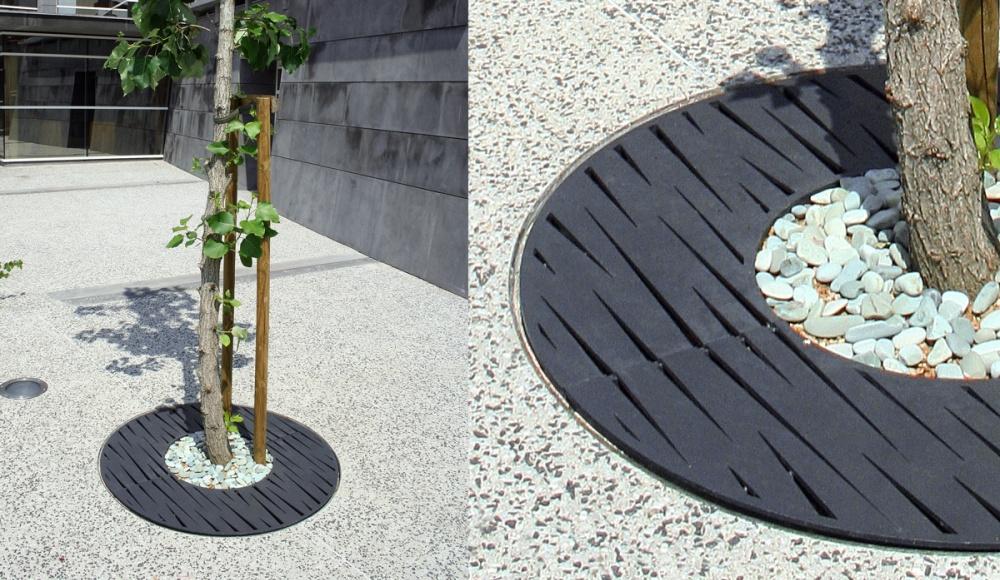

Mesh B+B – Round: External frame dimension: ø 1200 mm
Mesh C+C – External frame dimensions: 1385 x 1280 mm
Mesh D+D – External frame dimensions: 1700 x 1200 mm
Mesh B+D – External frame dimensions: 1450 x 1200 mm
Mesh D+C – External frame dimensions: 1545 x 1240 mm
Mesh B+C – External frame dimensions: 1295 x 1240 mm
Mesh C+A – External frame dimensions: 1295 x 1240 mm
Mesh B+A – External frame dimensions: 1200 x 1200 mm
Mesh D+A – External frame dimensions: 1450 x 1200 mm
Frame to be sealed: hot-dip galvanised.
Tree grate: Zinc coating then baked polyester powder coating.
More details in the Materials section
Recess for spotlight
Drainage hatch

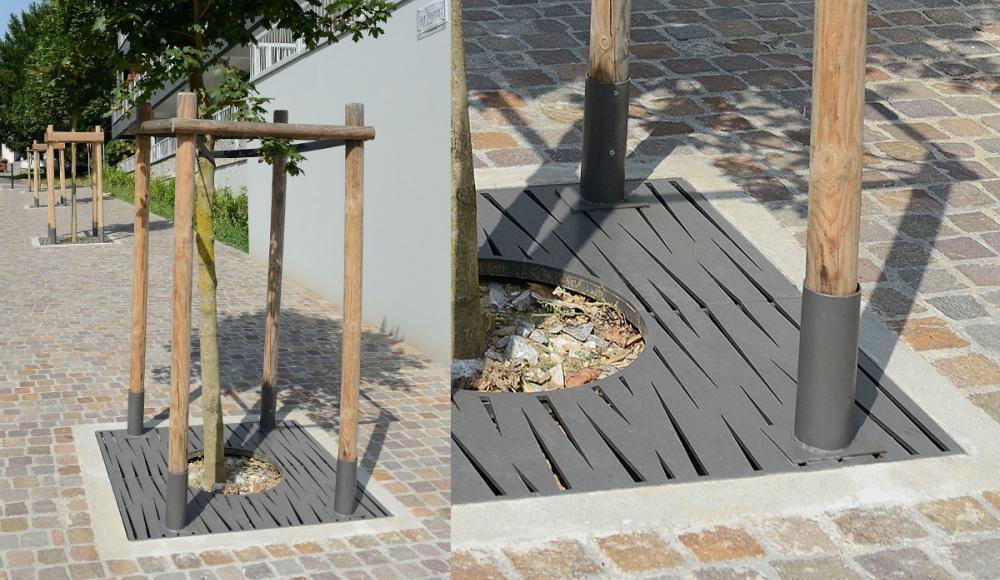

Hatch for wooden stake
Base for wooden stake
